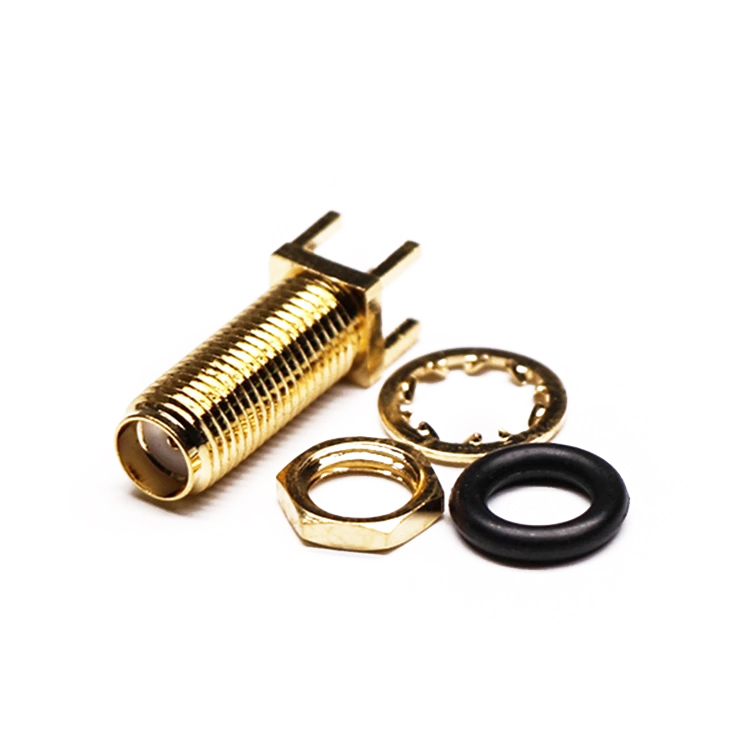

SMA Bulkhead IP67 PCB Panel Connectors

Part NO.: xxxxxxxxxxxxxxxx

Category:

Introduction:

SMA Bulkhead IP67 PCB Panel Connectors

Pins

Straight / Right Angle

Number of Cores

PCB/Panel Mount

Customizable

Product Description

Connector: RP-SMA male (inside threads with female inner hole pin);
Termination: cable-crimp; Impedance: 50 ohm
Well built: Connectors made from gold-plated brass for mechanical durability and secure connection
Compatible with coax cable RG-174, RG-316, RG-188, RG-188A, LMR-100
Great to build cable assemblies for your 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, etc

Products Feature

Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;

Material

Main body: Brass Au:1u
Center needle: Phosphor Au:3u
Insulator: TEFLON White

Want a Reliable RFConnectors Manufacturer to Support Your Project?
You’ll Never Regret to Contact Us.

Gender: Male / Female
Orientation: Straight / Right Angle
Polarity: Standard / Reverse Pole
Impedance: 50Ω/75Ω
Mounting Type: PCB Mount/Panel Mount/Cable
Mounting Feature:Flange/Bulkhead/Through Hole/SMT/Offset Type/Plate Edge Mount
Contact Termination Style: Solder Cup / Solder / Crimp / Screw-joint / Through Hole / SMT
Shield Termination: Crimp / Compression / Clamp / Twist On / Solder / Locking Wire
Cable Type: RG58 / RG59 / RG174
Function:Waterproof / Dustproof
Body Material: Copper / Steel
Body Plating: Gold Plating / Nickel Plating

Specification
