Part NO.: BWSMA-KWE-Z001
Category:
SMA PCB / Panel Connector
-
Single-Core
Customizable
Product descriptions from the supplier

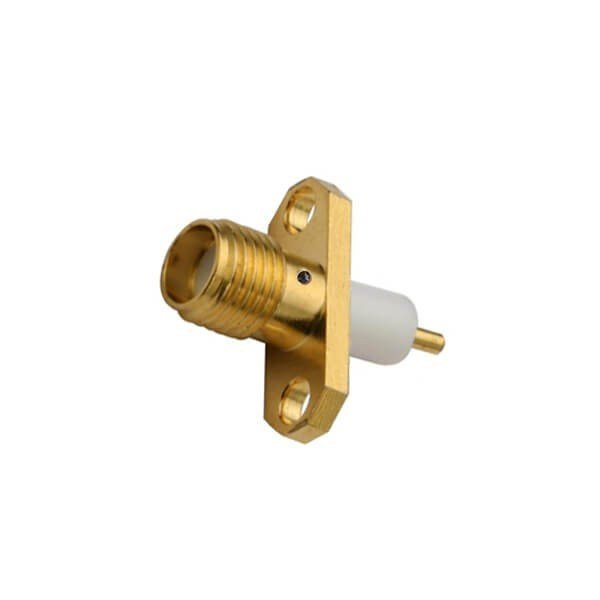

SMA PCB / Panel Connector SMA Cable Type Connector
Electrical
Impedance:50ohm
Frequency:6GHz
VSWR:Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142 , RG405 ; 750 V rms min. for RG316 , RG402 ; 500v rms min. for RG178
Working Voltage:500 V rms max. for RG142 , RG405 ; 375 V rms max. for RG316 , RG402 ; 170 V rms max. for RG178
Center Contact Resistance:≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance:≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance:≧ 5*10³ mΩ (Megohms min.)
Mechanical
Coupling:
1/4-36 Threaded
Coupling nut torque:
30 in-lbs. min.
Contact Retention:
15 in-lbs min.
Durability(mating):
≧ 500 cycles (For Beryllium Copper Contact)
Environmental
Temperature Range:-65°C ~ +155°C
Vibration:MIL-STD-202 Meth.204
Corrosion resistance:MIL-STD-202 Meth. 101
