Part NO.: BWSMA-KWE-Z001
Category:

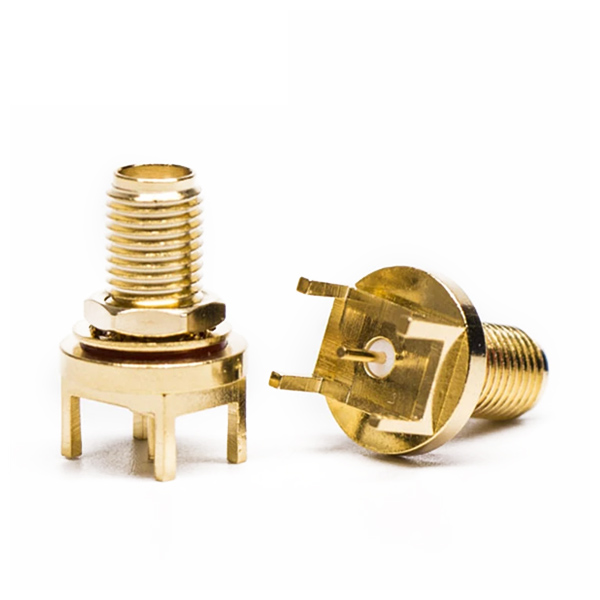

Sma Female Bulkhead Connector
-
Right Angle/90 Degree / Straight/180 Degree
Customizable
Product Description
Connector: RP-SMA male (inside threads with female inner hole pin);
Termination: cable-crimp; Impedance: 50 ohm Well built: Connectors made from gold-plated brass for mechanical durability and secure connection Compatible with coax cable RG-174, RG-316, RG-188, RG-188A, LMR-100 Great to build cable assemblies for your 50ohm RF applications including 4G LTE antennas, routers, WiFi antenna systems, etc
Products Feature
Excellent electrical performance up to 18GHz with low reflection; Thread type coupling mechanism ensure small loss and high security in compact design;
Material
Main body: Brass Au:1u Center needle: Phosphor Au:3u Insulator: TEFLON White
Gender: Male / Female Orientation: Straight / Right Angle Polarity: Standard / Reverse Pole Impedance: 50Ω / 75Ω Mounting Type: PCB Mount / Panel Mount / Cable Mounting Feature: Flange / Bulkhead / Through Hole / SMT / Offset Type / Plate Edge Mount Contact Termination Style: Solder Cup / Solder / Crimp / Screw-joint / Through Hole / SMT Shield Termination: Crimp / Compression / Clamp / Twist On / Solder / Locking Wire Cable Type: RG58 / RG59 / RG174 Function: Waterproof / Dustproof Body Material: Copper / Steel Body Plating: Gold Plating / Nickel Plating
Specification
Production of products through the ISO9001 system certification.Accredited by major operators, major equipment manufacturers and suppliers,We have advanced and perfect environmental testing equipment in the industry to ensure product quality.
The dark room is stable in rotation, and has the function of translation and swing, as well as the function of constant temperature and humidity environment control. After the verification of Theil laboratory and Kyle laboratory, the system has the advantages of high stability and small test error.
Having accumulated rich experience in antenna design and manufacturing, batwireless can deliver exclusive antenna solutions for your loT project.
