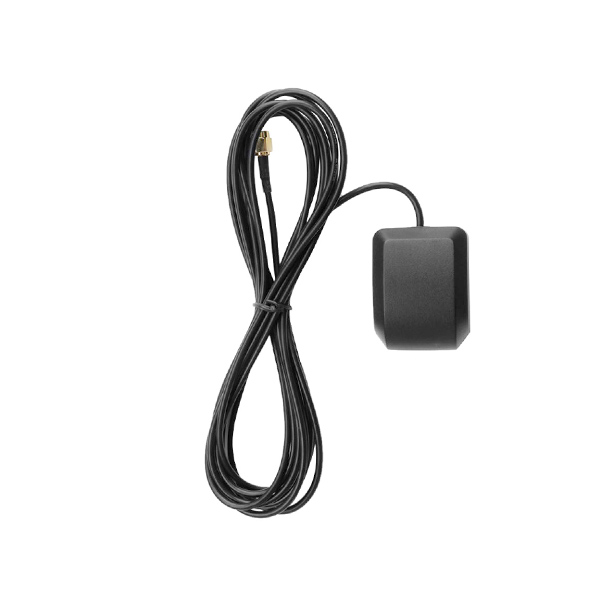

BFGPSZWX39-38L
1575.42MHz
Customizable
The GPS (Global Positioning System) antenna is a device that receives and amplifies the signals transmitted by GPS satellites in order to determine the location of a receiver. GPS antennas come in various shapes and sizes, and they are typically used in navigation systems, surveying equipment, and other applications where precise positioning is required.
The GPS satellite signals are divided into L1 and L2 at frequencies of 1575.42MHZ and 1228MHZ, respectively, where L1 is an open civilian signal and the signal is circularly polarized.
Product name: GPS Antenna Working Frequency(MHz): 1575.42-1601 MHZ Gain(DBi): 28-30 DBi Antenna efficiency: 35~80% VSWR: ＜1.8 PloriaztionVertical: polarization Axial ratio : 4.0 N/A Radiation Pattern: Omnidirectional Impedance: 50 ohm Impedance(ohm): 50 ohm Power handling( 33 dbm): 33 dbm Interface: SMA(Customzied) SIZE(mm): 39*38mm Weight(g): 15g Operating Temperature(℃): -30-70 ℃ Storage Temperature(℃): -30-70 ℃ way to install: strong magnet Cable type: RG174 or others
